7.84 Inch Mini Monitor HD IPS

Brand Name：wisecoco

Place of Origin：China

Screen Size：7.84 inch

Product Name：7.84 inch PC Second Monitor

Products Status：New

Application：Desktop

Response Time：3ms

Brightness：500cd/m

Interface Type：HDMI input, Micro usb

Contrast Ratio：900:1

Touch：no

Speaker：no

Panel：IPS

Backlight：LED Backlight

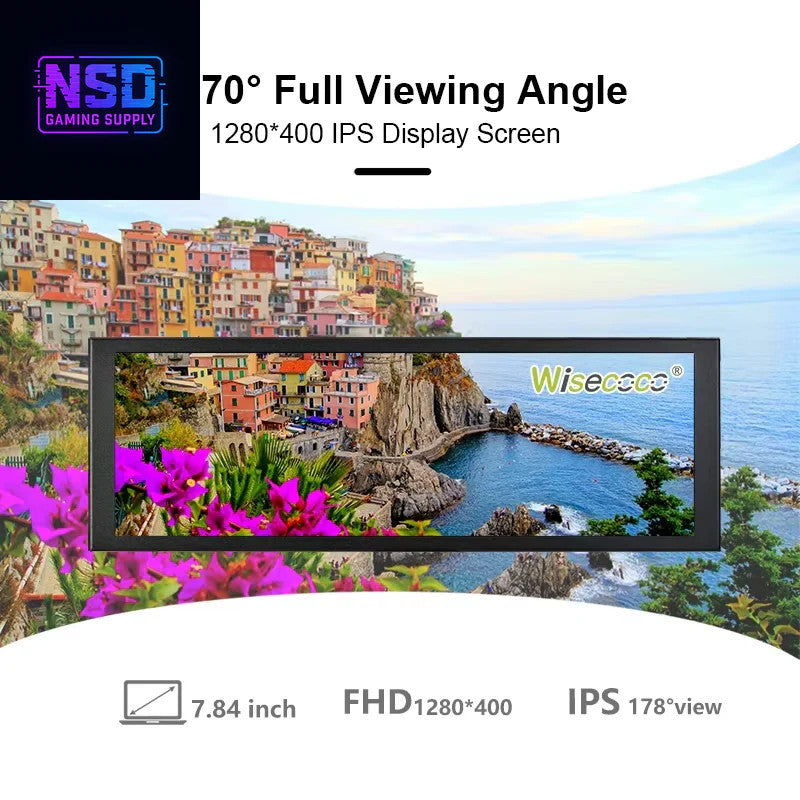

Viewing Angle：178

MOQ：1pcs

Keyword：Computer Pc Monitor

Condition：100% Original

Display color:16.7M(8-bit)

Two:modeExtended screen,Copy screen

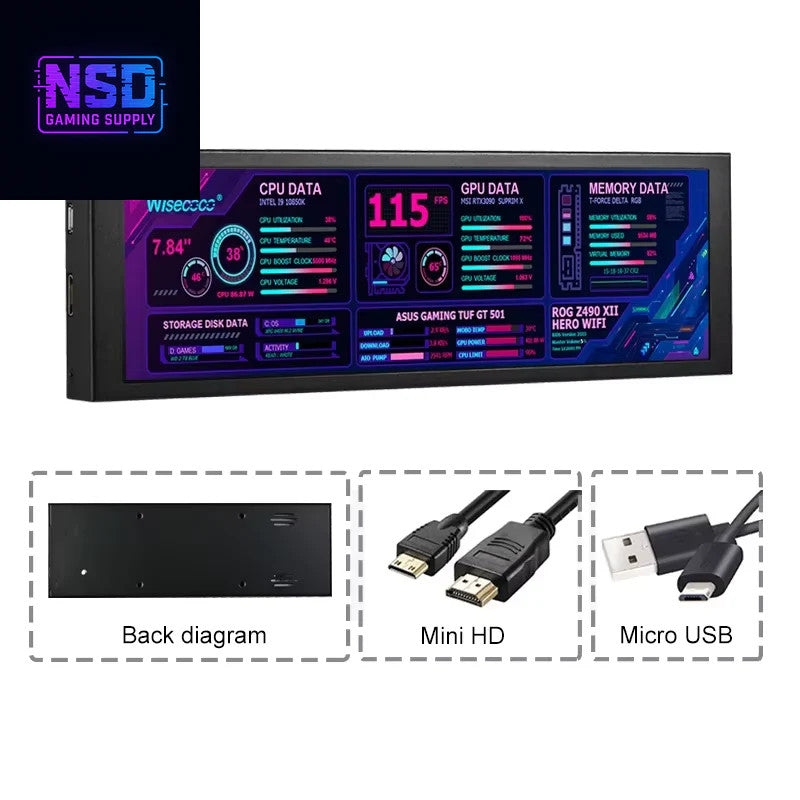

Widely Compatibility: Secondary Screen for computer, Connect your laptop, PC, It works perfectly with Windows, Raspberry pi System. it can be used as Aida64 sub second screen CPU GPU monitoring .

Connect to computer:

Connect one end of the included HDMI cable to the computer and the other end to the monitor.

※ If the monitor does not have a touch function, the USB cable only provides power for the monitor, just connect it to a computer or a USB adapter (current ≥ 0.3A).

※ If the monitor has a touch function, the USB cable needs to be directly connected to the USB interface with data transmission function of the Windows system host. At this time, the USB cable transmits power and touch signals.

Please note:

Please connect the HDMI cable directly to the native HDMI port of the computer, because the resolution of the display screen is special, not all docking station support 400×1280 resolution output.

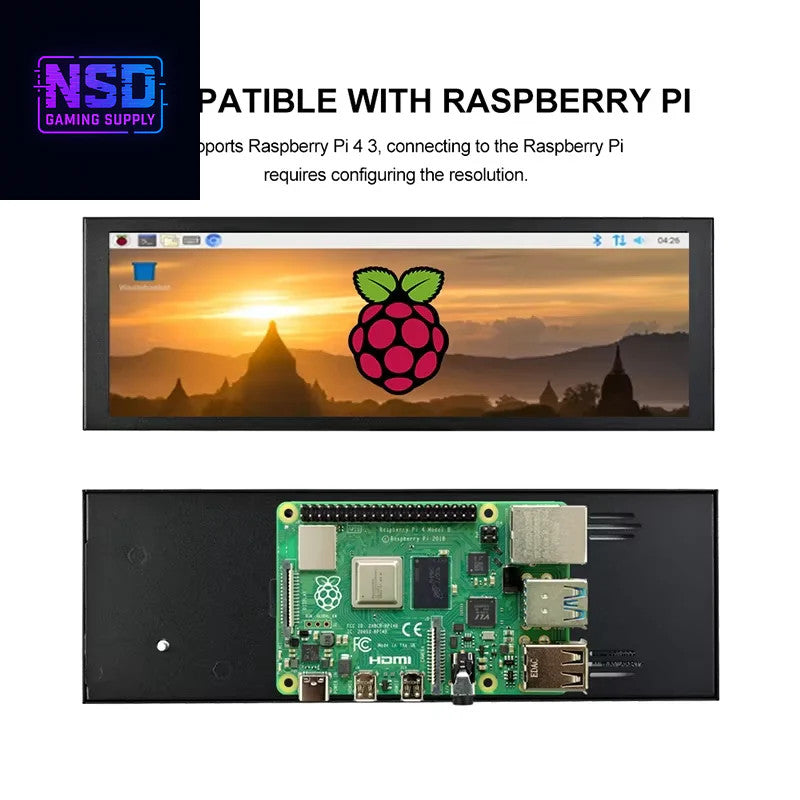

Connect to Raspberry Pi:

When used on Raspberry Pi, you need to modify the "config.txt"

Add the following code to the config.txt file:

max_usb_current=1

hdmi_group=2

hdmi_mode=87

hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3

Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.

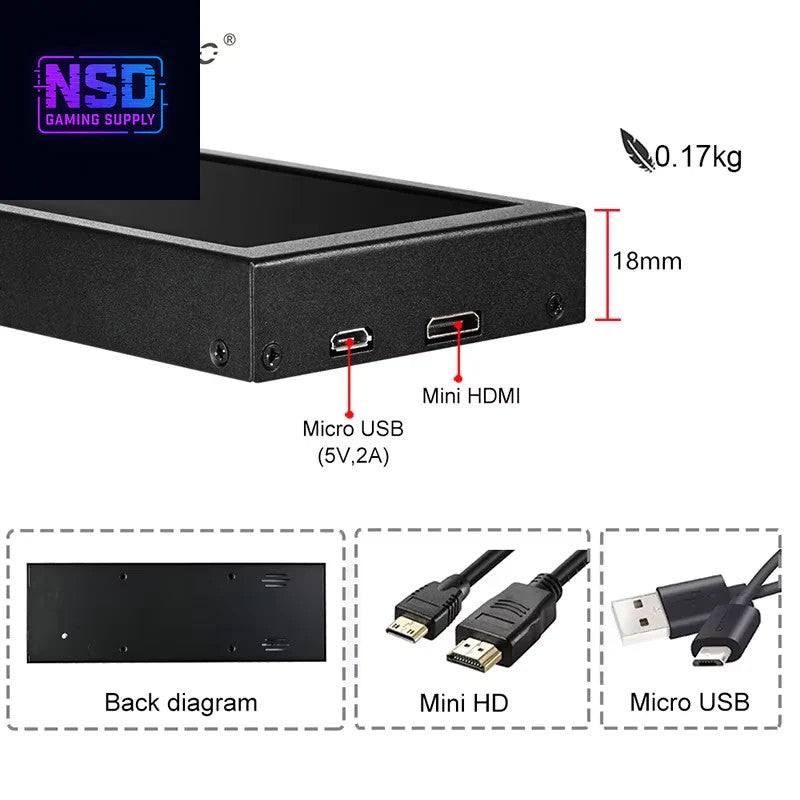

【Packing List】
1x 7.84 inch no touch portable monitor

1x Mini HDMI cable

1x Micro USB cable
